Household Testing Mechanical Vertical Impact Test Apparatus IEC60068-2

Brand Name : Sinuo

Model Number : SN2206

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 30 Sets Per Month

Delivery Time : 30 Days

Packaging Details : Standard Exporting Plywood

Standard : IEC60068

Energy / J : 2J, 5J, 10J, 20J

Conduit : Related to the height of fall

Impact point : Entire bottom area

Height of Impact point : 0-1000mm

Bottom plate : Nylon base plate

Weight : Approx. 200kgs

Dimensions : 1230x1080x1780mm

Contact Now

IEC60068-2 Household Testing Mechanical Vertical Impact Test Apparatus

Product Introduction For Mechanical Vertical Impact Test Apparatus:

The IK07-IK10 Mechanical Vertical Impact Test Apparatus is designed and manufactured according to the standard requirements of IEC60068-2-75, IEC60598-1, IEC62262 and etc.

It is used for the impact resistance test of the enclosures of household and similar electronic and electrical products and their accessories, luminaires, etc., to assess the safety performance and strength level of the products.
The principle is that the striking element is free released at a certain height through a 1 m pendulum tube, impact the specimen at the lowest point in the vertical direction, after the conversion of gravitational potential energy to kinetic energy, to achieve the purpose of impact test on the sample.

Technical Parameters For Mechanical Vertical Impact Test Apparatus:

Energy / J 2J, 5J, 10J, 20J

Striking Elements

(Equivalent Mass)

 500 g,1.7 kg, 5 kg, 5 kg, please refer to the following table 1
Conduit Each striking element is equipped with a dedicated conduit, the length of conduit is related to the height of fall, please refer to table 1
Impact Point The device has X and Y axis guides to move the release device over the entire bottom area
Height of Impact Point 0-1000mm, electric adjustable
Height of Fall Please refer to table 1, fixed by the conduit
Release Method Electromagnet release
Bottom Plate Nylon base plate thickness 8mm, hardnessHRR85-100,1000m×1000m
Equipment Dimensions Approx. 1230mm (L)x1080mm(W)x1780mm(H)
Equipment Weight Approx. 200KG

Table 1 Height of Fall:

Energy /J 0.14 0.2 (0.3) 0.35 (0.4) 0.5 0.7 1 2 5 10 20 50
Equivalent Mass /kg 0.25 (0.2) 0.25 (0.2) 0.25 (0.2) (0.2) 0.25 0.25 0.25 0.5 1.7 5 5 10
Height of Fall ±1%mm 56 (100) 80 (150) 140 (200) (250) 200 280 400 400 300 200 400 500
Note 1, see note 3.2.2; Note 2, the energy unit of this part of the joule (J) is derived from the standard gravity acceleration (g), the whole value of g round: 10m / s2.

Household Testing Mechanical Vertical Impact Test Apparatus IEC60068-2


Product Tags:

Mechanical Vertical Impact Test Apparatus



Household Vertical Impact Test Apparatus



IEC60068-2 Impact Test Apparatus


Quality Household Testing Mechanical Vertical Impact Test Apparatus IEC60068-2 wholesale

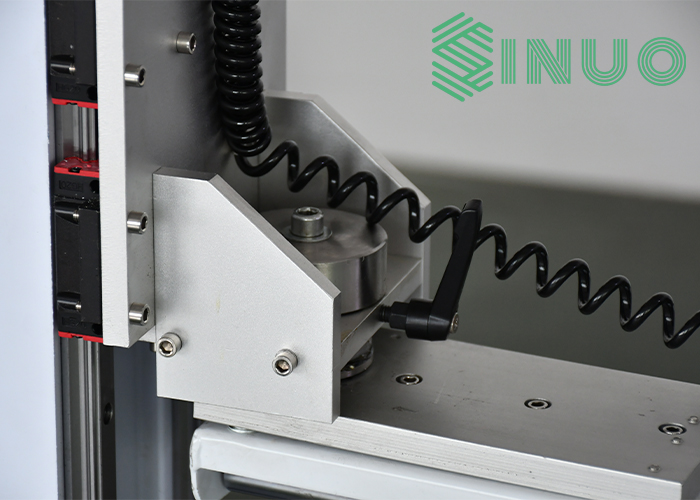

Household Testing Mechanical Vertical Impact Test Apparatus IEC60068-2 Images
